Complete Roll-Off Tarping System

IN STOCK
Customize Here

Select Gantry System

  • Fixed Gantry Basic (VMAX 1100) *

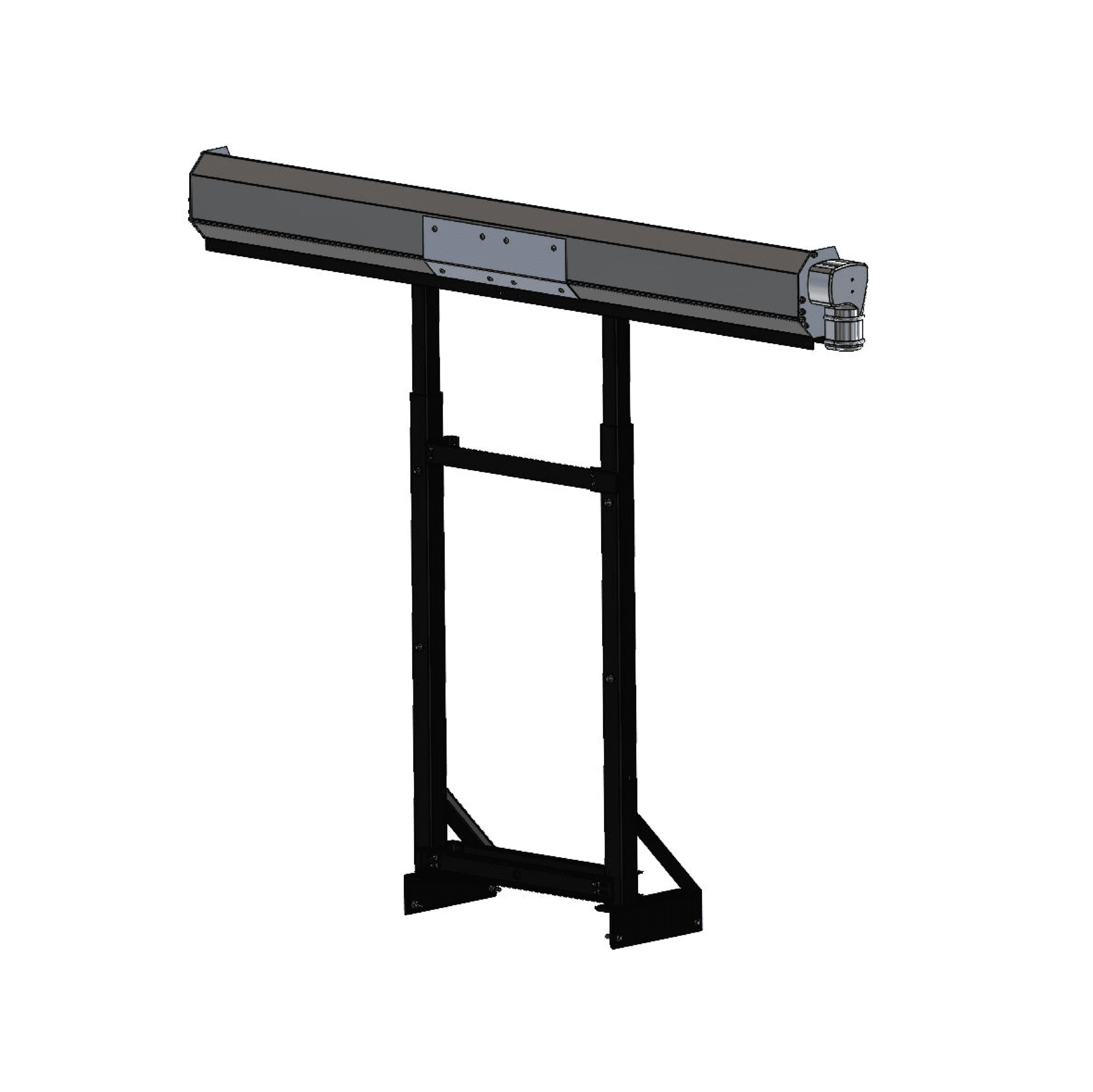

    Fixed Gantry System (VMAX 1100)

    $2,936.16

    Fixed gantry for roll-off container trucks with full manual adjustment from 68 -112 in. height.


    Our premier system is engineered for durable, trouble-free operation over spring-systems.
    Less than 11 in. clearance between cab and container required.

    AddRemove

  • Hydraulic Gantry Basic (VMAX 2100) *

    Hydraulic Gantry System w/ 48″ Stock Cylinder (VMAX 2100)

    $3,599.49

    The only gantry for roll-off container trucks on the market with full adjustment from 68 -116 in. height.


    Our premier system is engineered for durable, trouble-free operation over spring-systems.
    This unit includes a convenient single 48 in. hydraulic cylinder and can be installed in a single day.

    AddRemove

Select Arm System

  • Steel Arm System (GHS 5260) *

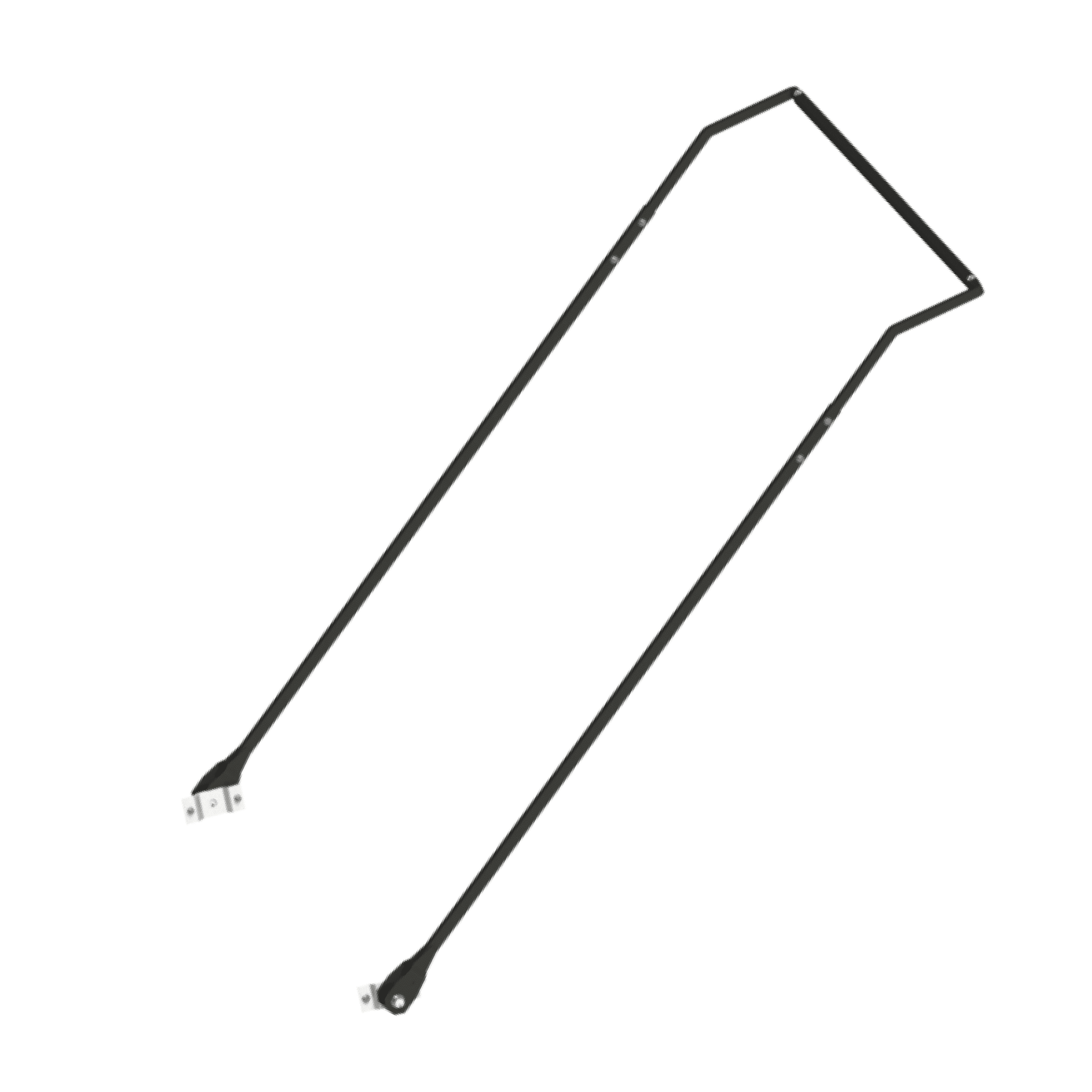

    Steel Tarp Arm System with Bent Arms for Roll-off Containers

    $593.96

    Upgrade your roll-off container truck tarping system with our robust Steel Tarp Arm Assembly Kit.
    Constructed from high-grade steel, this kit is exceptionally durable and designed for heavy-duty operations. It features 5 spiral torsion springs, heavy-duty corners, and is proudly manufactured in the USA. System can be converted to 4 spring by removing a spring.
    For use with a Gantry System and Mule Mesh Tarp of your choice, sold separately. Click here

    AddRemove

  • Aluminum Arm System (GHS 8630) *

    Aluminum Arm System For Roll-Off Containers

    $661.55

    Elevate the quality and efficiency of your roll-off container truck tarping system with our high-grade Aluminum Tarp Arm Assembly Kit.
    Constructed from high tempered aluminum tubing, this kit is exceptionally sturdy and lightweight. It features 5 spiral torsion springs, heavy-duty solid corners, and is proudly manufactured in the USA.
    For use with a Gantry System and Mule Mesh Tarp of your choice, sold separately. Click here

    AddRemove

Select Mounting Brackets

  • 90° Fender Mounting Brackets *

    Fender Mounting Brackets For Arm System (VMAX 7016)

    $253.50

    Ensure a secure and reliable attachment of your tarp arm systems to the wheel well of roll-off container trucks with our Heavy-Duty Fender Mounting Brackets.
    Made from black powder-coated steel in a 90-degree angle shape, these brackets come in pairs and feature pre-drilled holes for easy mounting.
    Compatible with the GHS 5260 Steel Tarp Arm System and the GHS 8630 Aluminum Tarp Arm System.

    AddRemove

  • Arm Mounting Brackets (For 34" Frame) *

    Arm System Mounting Brackets For 34″ Frame (VMAX 1125)

    $276.31

    Our Custom-Fit Mounting Brackets are designed for use 34 in. chassis/frame.
    Sold in pairs, these brackets come with pre-drilled holes, ensuring easy and secure attachment of your tarp arm system mounting pins.
    Perfectly compatible with GHS 5260 Steel Tarp Arm System and GHS 8630 Aluminum Tarp Arm System.

    AddRemove

Add Roll-Off Tarp

  • Heavy Duty 8'x28' Mule Mesh Tarp *

    High Strength Mesh Tarp for Standard Rolloffs (LSMMM828)

    $194.01

    Introducing our Heavy-Duty Black Mesh Tarp, designed specifically for standard roll-off container trucks.
    This tarp measures 8’ wide x 28’ long and is crafted from 22oz Heavy Duty Mule Mesh, ensuring unparalleled strength and durability. It comes with a pocket for roll-off cross bars and multiple grommets for secure attachment. Save on costs with fewer replacements.
    Custom sizing available upon request.
    Approximate Size: 7'9" x 28', Tolerances +/- 2"

    AddRemove

Additional Add-Ons

  • If You Need A Valve... *

    Manual Valve Kit (VMAX 2120)

    $236.55

    Designed for use with our VMAX Hydraulic Gantry System.
    This manual valve kit includes a single spool hydraulic control valve for precise fluid management, a mounting plate for easy installation, two hydraulic hoses, and four fittings for secure connections.
    Ideal for heavy-duty applications on roll-off container truck tarping systems.

    AddRemove

  • If You Need A Hydraulic Pump... *

    Power Pack [Hydraulic Pump] (VMAX 2130)

    $841.31

    Upgrade your VMAX Hydraulic Gantry System with our comprehensive Hydraulic Power Pack Unit.
    This pack includes a hydraulic power pack pump, mounting plate, 2-position rocker switch, automotive cross-link wire, 15 ft. of 6-gauge wire, and hydraulic fittings, all designed to ensure smooth and powerful operation.
    Ideal for heavy-duty lifting and industrial applications.

    AddRemove

  • For 3000+ PSI Pumps... *

    Flow Control Valve – For 3000+ PSI (VMAX 2145)

    $101.04

    High-Pressure Flow Control Valve Kit specifically designed for PTO systems operating over 3000 PSI.
    This kit ensures precise control of the hydraulic fluid flow, optimizing the performance and reliability of your tarping system.
    It includes one high-grade NPT valve and two hydraulic fittings for a seamless integration.

    AddRemove

  • If You Need Lights... *

    LED Light Kit with On-Off Switch (VMAX 2150)

    $52.36

    Enhance safety and functionality with our Heavy-Duty LED Light Kit, specifically designed for hydraulic tarping systems on roll-off container trucks.
    This kit is made for our VMAX gantry systems and includes two 27-watt, 4-inch LED lights, a rugged 2-position rocker switch with an on/off cover, and a length of high-grade automotive crosslink wire for secure installation.
    Improve visibility during loading, unloading, and transit, especially in low light conditions.

    AddRemove
