ALUMINUM ARM SYSTEM FOR DUMP TRUCKS UP TO 40 ft. (GHS 8640U)
NOTICE: BENT ARM ASSEMBLY UPGRADE SHOWN IN PRODUCT IMAGE.
SYSTEM FEATURES:
- Telescopic arm assembly adjusts up to 40 ft. length dump bed.
- Underbody mounted spring assembly.
- Aircraft grade tempered aluminum tubing.
- EPDM rubber tarp bumpers.
- Optional upgraded arm models:
- Bent Arm Assembly (GHS 8640U BA)
NOTICE: DUMP TRUCK TARP AND TARP WIND-UP UNIT OF YOUR CHOICE SOLD SEPARATELY.
Tarps For Dump Trucks
Here are several dump truck tarps often purchased with our tarping systems.
Aluminum Tarp Arm Assembly For Dump Trucks Up To 40 FT. (GHS 8640U)Â
- TELESCOPIC ARM ASSEMBLY ADJUSTS UP TO 40 FEET DUMP BEDS.

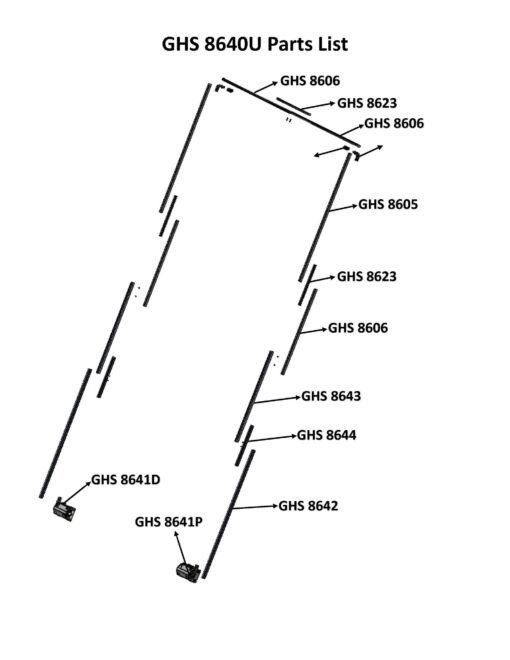

- Aluminum arm assembly kit contains the following:
- (14) Spiral torsion springs (GHS 1516)
- (2) Pin for 5-spring system (GHS 5260-PIN)
- (4) Bronze pushing (GHS 8601)
- (2) Heavy duty solid aluminum corners (GHS 8603)
- (2) EPDM rubber bumpers (GHS 8604)
- (2) Aluminum upper arms (GHS 8605)
- (4) Aluminum cross bar/upper arm (GHS 8606)
- (3) Sleeve connector (GHS 8623)
- (2) Aluminum lower arm (GHS 8642)
- (2) Aluminum lower arm-2 (GHS 8643)
- (2) Lower arm connecter (GHS 8644)
- (2) Underbody bracket (GHS 8692)
- (4) Pillow bearing (1-1/4 inch) (GHS 8693)
- (2) Underbody pivot shaft (GHS 8694)
- (2) Underbody mount cover (GHS 8698)
- (2) Complete underbody pivot key (GHS 8699)
- System is constructed from high tempered aluminum tubing.
- Optional style upgrade:
- Bent arm assembly (GHS 8640U-BA)
- Proudly manufactured in the USA.
Important Notices
- TARP NOT INCLUDED with arm assembly purchase.
- TARP WIND-UP UNIT NOT INCLUDED with arm assembly purchase.
About Harp’s Tarps
Since 1976, Harp’s Tarps has supplied quality, American-made products to haulers around the country. Our family owned business manufactures industry-leading tarps and tarping systems in Stone Mountain, GA. At Harp’s Tarps, your business needs come first. You work hard for your money, so we want it to work harder for you. We build our quality products to last, saving you from costly repairs down the road. Learn more about the Harp’s Tarps team and our family story here.
To stay updated on our products, follow Harp’s Tarps on Facebook, Instagram, or Twitter.
| Dimensions | 80 × 11 × 5 in |
|---|
